Metrology Minute

Reading surface deviation colour maps.

Fong MH
8 April 2026 1 min read

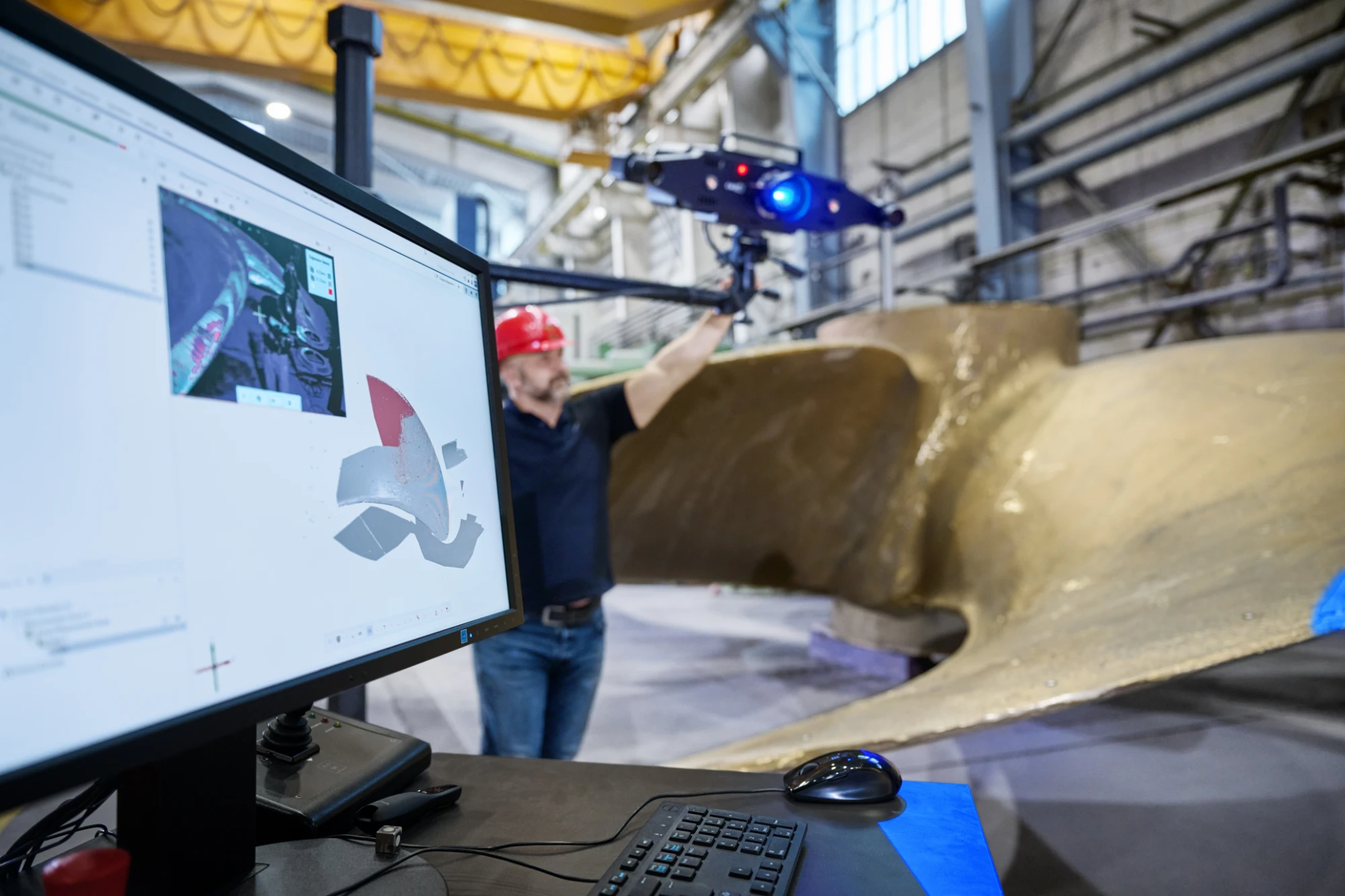

ZEISS ATOS LRX scanning a large cast ship propeller blade, with the captured mesh on the operator screen

From blue to red, the colour spectrum shows exactly where and by how much a part departs from nominal.

A surface deviation map overlays measured geometry onto the nominal CAD model and colours every point by how far it deviates. Green typically means on-nominal; cool colours indicate material below nominal, and warm colours indicate material above.

Because the whole surface is coloured at once — not just a handful of probed points — deviation maps make it immediately obvious where a forming, casting, or machining process is drifting, so corrective action can be targeted rather than guessed.

When you set sensible tolerance bands, the map becomes a fast pass/fail communication tool that even non-metrologists on the production floor can read at a glance.
